Ergotron HX Desk Monitor

Name: Ergotron HX Desk Monitor
SKU: 189
Price: 71364 INR
Availability: BackOrder

71,364

HX Desk Monitor Arm (white) 45-475-216

HX Desk Monitor Arm (polished aluminum) 45-475-026

HX Desk Monitor Arm (matte black) 45-475-224

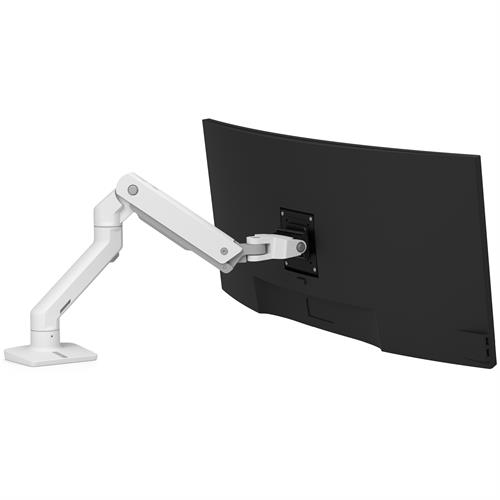

Choose a monitor arm that’s as adaptable as you. With the HX Desk Monitor Arm, you can easily reposition large monitors weighing up to 42 lbs (19.1 kg) using patented Constant Force™ Technology. It enhances your workspace with a sleek design, and an optional dual or triple monitor bow kit ups your screen count and productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

NOTE: To use this arm with the ultra-wide, curved Samsung 49″ Odyssey G9, the accessory HX Heavy-Duty Tilt Pivot is required. See Tech Specs.

Color

Clear

SKU: N/A Categories: Ergonomics, IT Shop

Description

Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware

Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Portrait/landscape rotation with lockout

Streamlined cable management routes cables under arm and within extension

Desk clamp attaches to surface edge 0.4″ to 2.4″ (1 to 6.6 cm) thick

Grommet mount attaches through surface holes

§ Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth > 6″ (15 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6″–12″ (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is required

To use an HX arm with the ultra-wide, curved Samsung 49″ Odyssey G9 Monitor, also order the accessory HX Heavy-Duty Tilt Pivot (98-540-216)

* Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

† Tilt Range: 70° backward, 5° forward

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Warranty: Ten (10) years

Delivery time: 6-8 weeks

Product Sheet

Dimensional Illustration

Installation Manual
