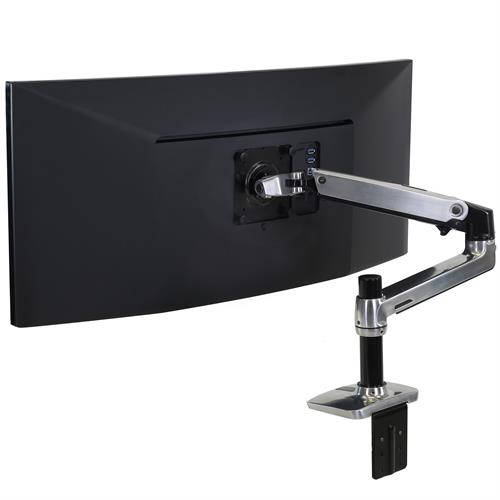

Ergotron LX Desk Monitor Arm

Description

Includes arm, extension, base, 2-piece clamp, 7″ pole, attachment hardware

Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)

Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Patented Constant Force™ motion technology provides premium ease-of-use display adjustment

Aluminum construction offers greater durability and enhanced aesthetics

Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Snap-fit cap secures interface of arm to extension for greater stability

Cable management feature routes cables under the arm, out of the way

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

* Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5″ (11 cm) for a total height range of 8.5″ (22 cm)

Note: If installed on WF-T or WF-TL, maximum allowable monitor weight is reduced to 14 lbs (6.4 kg). A separately ordered Grommet Mount (98-017) is required for attachment

† Tilt Range: 70° backward, 5° forward

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Desk Clamp attaches to surface edge .4″ to 2.4″ (10 to 60 mm) thick

Grommet Mount not included with this arm. Order the Grommet Mount accessory (98-034) to attach arm through a surface hole. (Grommet Mount is included with polished-aluminum and matte-black models of arm, 45-241-026 and 45-241-224)

Note: This arm cannot be retrofitted with a Low-Profile Clamp
