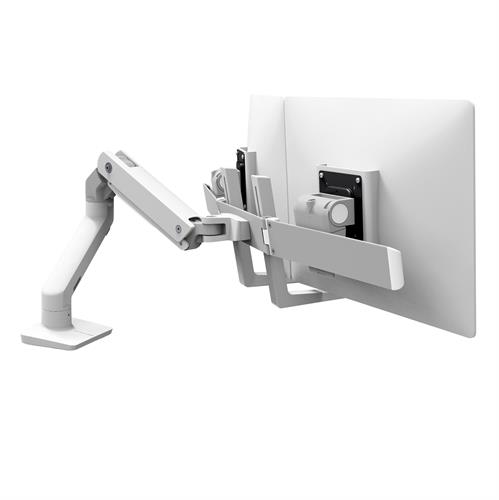

Ergotron HX Desk Dual Monitor Arm

Name: Ergotron HX Desk Dual Monitor Arm
SKU: 197
Availability: BackOrder

121,524

HX Desk Dual Monitor Arm 45-476-026 (polished aluminum)

HX Desk Dual Monitor Arm 45-476-224 (matte black)

HX Desk Dual Monitor Arm 45-476-216 (white)

Choose a monitor arm that’s as adaptable as you. With the HX Desk Dual Monitor Arm, you can easily reposition two 32″ monitors using patented Constant Force™ Technology. The hinged bow lets you easily pan your monitors for screen sharing and the most comfortable views. Add a triple monitor bow kit to up your screen count and your productivity. It’s BIFMA level® 2 certified based on the arm’s low environmental and social impact.

Color

Clear

SKU: N/A Categories: Ergonomics, IT Shop

Description

Includes arm, extension, hinge bow, two monitor pivots, handle, desk clamp, grommet mount, mounting hardware

Desk clamp attaches to surface edge 0.4″ to 2.4″ (1 to 6.6 cm) thick

Grommet Mount (included) attaches through surface holes

Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Portrait/landscape rotation with lockout

Streamline cable management that routes cables under arm and within extension

‡ Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm). The optional VESA Bracket Adaptor Kit (97-759) allows the attachment of displays with VESA hole patterns of 200 x 100, 200 x 200, 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

* Weight Capacity: Individual LCD weight = 5–17.5 lbs (2.3–7.9 kg) per monitor. Total LCD weight= 10–35 lbs (4.6–15.8 kg)

Monitor depth greater than 2.5″ (6.4 cm) may diminish capacity

** Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

Hinge bow turns 40° inward and 90° outward

† Tilt Range: 70° backward, 5° forward

Pivots feature quick install and release and feature effortless portrait to landscape 6° pan and tilt

Up to 24.5″ (60 cm) extended reach and 11.5″ (29.2 cm) vertical height adjustment

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Warranty: Ten (10) years

Delivery Time:6-8 weeks

Product Sheet

Dimensional Illustration

Installation Manual
